Causes, Engineering Solutions, and How to Achieve Stable Output

Introduction

As demand for fire-resistant and thermal insulation materials continues to grow, many manufacturers are upgrading to high-capacity rock wool production lines. However, increasing output is not simply a matter of adding speed or enlarging equipment.

In real production environments, higher capacity often exposes hidden bottlenecks that directly affect fiber quality, board density stability, and overall yield. Understanding these bottlenecks — and how to solve them — is essential for achieving stable, long-term production.

This article analyzes the most common bottlenecks in high-capacity rock wool production lines, explains why they occur, and outlines proven engineering solutions based on real commissioning experience.

---

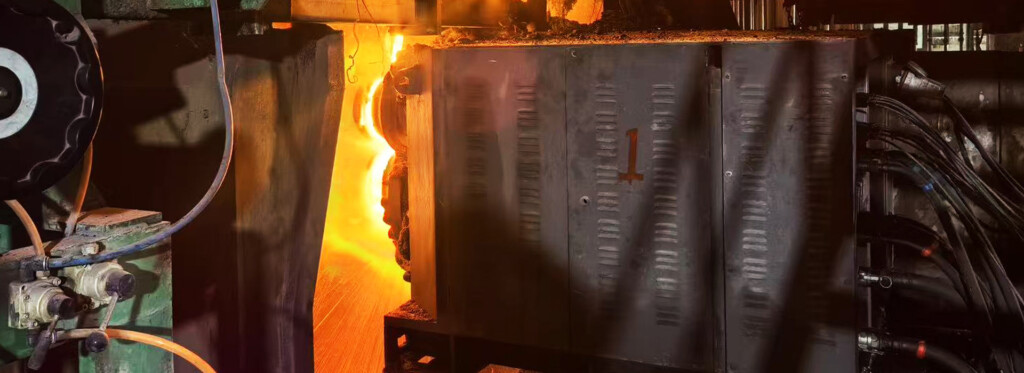

Bottleneck 1: Unstable Fiber Formation in the Centrifuge System

The Problem

In high-output rock wool production lines, fiber quality degradation is one of the earliest warning signs. Typical symptoms include:

• Increased shot (non-fiberized particles)

• Uneven fiber diameter

• Poor fiber distribution on the collection belt

These issues often worsen as melting throughput increases.

Why It Happens

At higher capacities, the centrifuge system operates under more extreme conditions:

• Molten basalt flow rate exceeds optimal fiberization range

• Airflow distribution becomes uneven

• Temperature fluctuations reduce melt viscosity stability

When these parameters are not precisely controlled, fiber formation becomes inconsistent.

Engineering Solution

A stable high-capacity centrifuge system requires:

• Optimized centrifuge wheel geometry for higher melt flow

• Precisely controlled airflow angles and pressure

• Stable melting temperature control upstream

In many high-capacity rock wool production lines commissioned by Guangxing Machinery, fiber stability is improved by synchronizing melt flow rate with centrifuge rotational speed rather than increasing airflow alone.

---

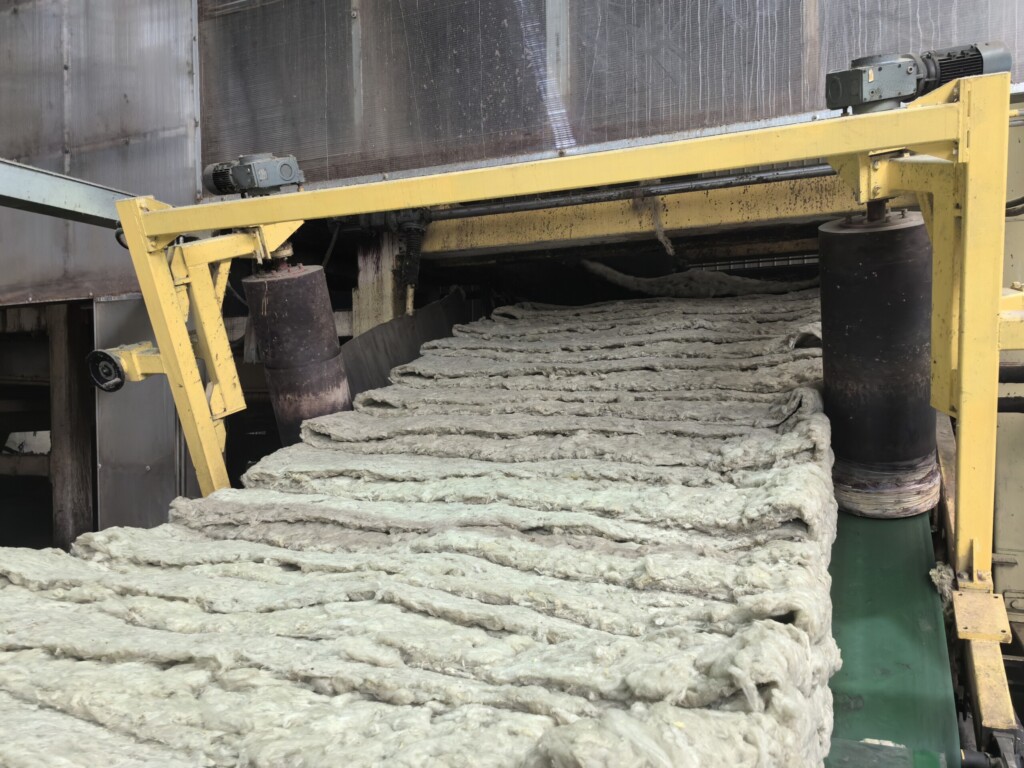

Bottleneck 2: Density Fluctuation in Rock Wool Boards

The Problem

Density inconsistency is a critical quality issue, especially for construction-grade rock wool boards. Manufacturers often experience:

• Density deviation across board width

• Batch-to-batch density variation

• Difficulty meeting EN or ASTM standards

Why It Happens

In high-capacity production, density instability is usually caused by:

• Uneven fiber deposition on the forming belt

• Inconsistent pendulum or fiber distribution system

• Fluctuating suction pressure beneath the belt

As line speed increases, even small distribution errors are amplified.

Engineering Solution

To stabilize density, the production line must ensure:

• Uniform fiber dispersion before deposition

• Stable and adjustable pendulum motion

• Balanced negative pressure control across the belt width

High-capacity lines require real-time adjustment capability, not fixed mechanical settings.

---

Bottleneck 3: Binder Application Inefficiency at High Output

The Problem

At increased production speeds, binder application often becomes insufficient or uneven, leading to:

• Reduced board strength

• Poor recovery after compression

• Higher scrap rate during cutting

Why It Happens

Traditional binder spraying systems may not scale effectively with higher fiber flow:

• Spray coverage does not fully penetrate dense fiber layers

• Binder dosage control lags behind line speed changes

Engineering Solution

An effective solution includes:

• Multi-point binder spraying systems

• Flow-rate-synchronized binder control

• Improved nozzle layout for deeper fiber penetration

This ensures consistent bonding even at higher fiber throughput.

---

Bottleneck 4: Curing Oven Capacity and Heat Distribution

The Problem

In high-capacity rock wool production lines, curing ovens often become a limiting factor rather than fiber formation itself.

Common issues include:

• Incomplete curing

• Uneven board hardness

• Excessive energy consumption

Why It Happens

As line speed increases:

• Heat penetration time is reduced

• Temperature gradients develop inside the oven

• Air circulation becomes insufficient for thicker boards

Engineering Solution

To support higher capacity, the curing system must be upgraded with:

• Extended or modular oven design

• Optimized hot air circulation paths

• Precise temperature zoning control

Proper curing is essential for mechanical strength and long-term dimensional stability.

---

Bottleneck 5: Downstream Cutting and Handling Limitations

The Problem

Even when fiberization and curing are stable, downstream systems can restrict overall output:

• Cutting inaccuracies at high speed

• Stacking instability

• Increased manual intervention

Why It Happens

Downstream equipment is often designed for lower capacities and becomes misaligned with upgraded upstream systems.

Engineering Solution

High-capacity production lines require:

• Servo-controlled cutting systems

• Synchronized line speed control

• Automated stacking and packing solutions

A production line is only as strong as its weakest downstream component.

---

Conclusion

High-capacity rock wool production lines offer significant productivity advantages, but only when engineering bottlenecks are properly addressed. Simply increasing speed without system-level optimization leads to quality loss, higher scrap rates, and unstable operation.

By focusing on centrifuge stability, fiber distribution, binder application, curing efficiency, and downstream handling, manufacturers can achieve both high output and consistent product quality.

With decades of experience in rock wool production line engineering and commissioning, Guangxing Machinery designs solutions that balance capacity, stability, and long-term operational reliability.
